Braided hoses

  1. Home
  2. Braided hoses

Production and sale of

Braided hoses

Production of braided hoses

Hoses Technology production of braided hoses can be subdivided into the following three categories:

  • Galvanised steel braid: galvanised steel wire braid with external diameter of 10 mm to external diameter of 120 mm
  • Stainless steel braid: stainless steel (AISI 304 and AISI 316) wire braid with external diameter of 6 mm to external diameter of 120 mm
  • Textile braid: textile wire braid with external diameter of 3 mm to external diameter of 33 mm

Hose braiding for third parties

Hoses Technology also produces braided hoses for third parties according to the requested specification of customers, and in accordance with the use for which the hose has been ordered. Braiding can be performed up to a diameter of 120 mm, on any type of hose:

  • air, water and inert fluid hoses
  • gas hoses
  • oil and fuel hoses
  • hot water and steam hoses, etc.

TT/EPDM/ZINC
TT/EPDM/ZINC

Galvanized steel wire braided one layer EPDM hose.
Temp: -30°C + 100 °C

TT/NBR/ZINC
TT/NBR/ZINC

Galvanized steel wire braid one-layer NBR hose
Temp: -20°C + 90°C

TT/PTFE/INOX
TT/PTFE/INOX

PTFE one layer hose braided with stainless steel Temp: -70°C + 260°C

TT/PTFE/CON/INOX
TT/PTFE/CON/INOX

PTFE convoluted hose braided with stainless steel Temp: -70°C + 250°C

SAE 100/R4/ZINC
SAE 100/R4/ZINC

Galvanized steel wire braided rubber hose , suitable for suction and delivery of hydraulic fluids and fuels Norm: SAE J 517: SAE/100 R4 Temp: -40°C + 93°C

SAE 100/R6/ZINC
SAE 100/R6/ZINC

Galvanized steel wire braided rubber hose, suitable for suction and delivery of hydraulic fluids, oils, lubrucants and air
Norm: SAE J 517: SAE/100 R6
Temp: -40°C + 100°C

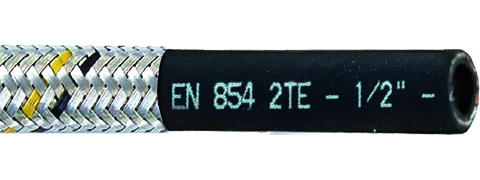

DIN 20021/2TE/ZINC
DIN 20021/2TE/ZINC

Galvanized steel wire braided rubber hose, suitable for suction and delivery of hydraulic fluids, oils, lubrucants and air
Norm: EN 854 TYPE 2TE/ DIN 20021-2TE
Temp: -40°C + 100°C

EN854/2TE/ZINC
EN854/2TE/ZINC

Galvanized steel wire rubber hose suitable for delivery of hydraulic fluid, oils, lubricants and air.
Standards: EN 854 type 2TE

TEMPERATURE RANGE: -40 ̊C +100 ̊C

TRECOIL/CO/ZINC
TRECOIL/CO/ZINC

Galvanized rubber hose braided with cotton
Norm: DIN 73379 TYPE B
Temp: -20°C + 100°C

EN857/1SC/ZINC
EN857/1SC/ZINC

Rubber high pressure galvanized braided hose
Norm: EN 857
Temp: -40°C + 100°C

EN857/2SC/ZINC
EN857/2SC/ZINC

Rubber high pressure hose braided with galvanized steel
Norm: EN 857
Temp: -40°C + 100°C

TT/VITON/INOX
TT/VITON/INOX

One layer rubber hose braided with stainless steel , suitable for high concentration and high temperature fuels and chemical products Temp: -10°C +200°C

GPL/B/ZINC-Y
GPL/B/ZINC-Y

Thermoplastic hose braided with galvanized steel, suitable for gpl
Norm: UNI CIG 7140/93
Temp: -10°C + 60°C

METANO/W/ZINC
METANO/W/ZINC

Thermoplastic hose braided with galvanized steel, suitable for methane
Norm: UNI CIG 7140/93
Temp: -10°C + 60°C

TT/CR ASTMC542/ZINC
TT/CR ASTMC542/ZINC

Galvanized steel wire braided rubber hose, suitable for methane and other inert gases Norm: ASTM C 542 Temp: -30°C + 100°C
