Hose SAE 100/R4/FLEX

Rubber with helix hose suitable for suction and delivery of hydraulic fluids, mineral oils and fuels
Norm: SAE J517 : SAE/100 R4 Temp: -40°C + 100°C

Download the technical sheet

Tube: black smooth NBR rubber, resistant to petroleum products with aromatic content until 50%
Reinforcement: metal helix with high strenght synthetic textile fabric , and copper wire
Cover: black NBR/CR rubber - abrasion, heat, fuels, oils and weathering resistant

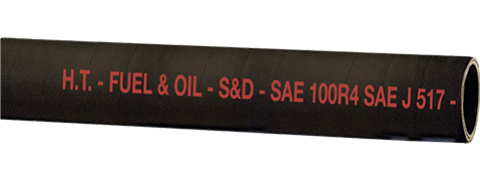

Surface: smooth fabric finish Marking: stripe with red ink H.T.-FUEL & OIL S&D SAE/100 R4 SAE J517 W.P. PSI Available on request: SAE/100 R4 FLEX ZINC: with galvanized braiding SAE/100 R4 FLEX INOX: stainless steel braiding


Request informations
